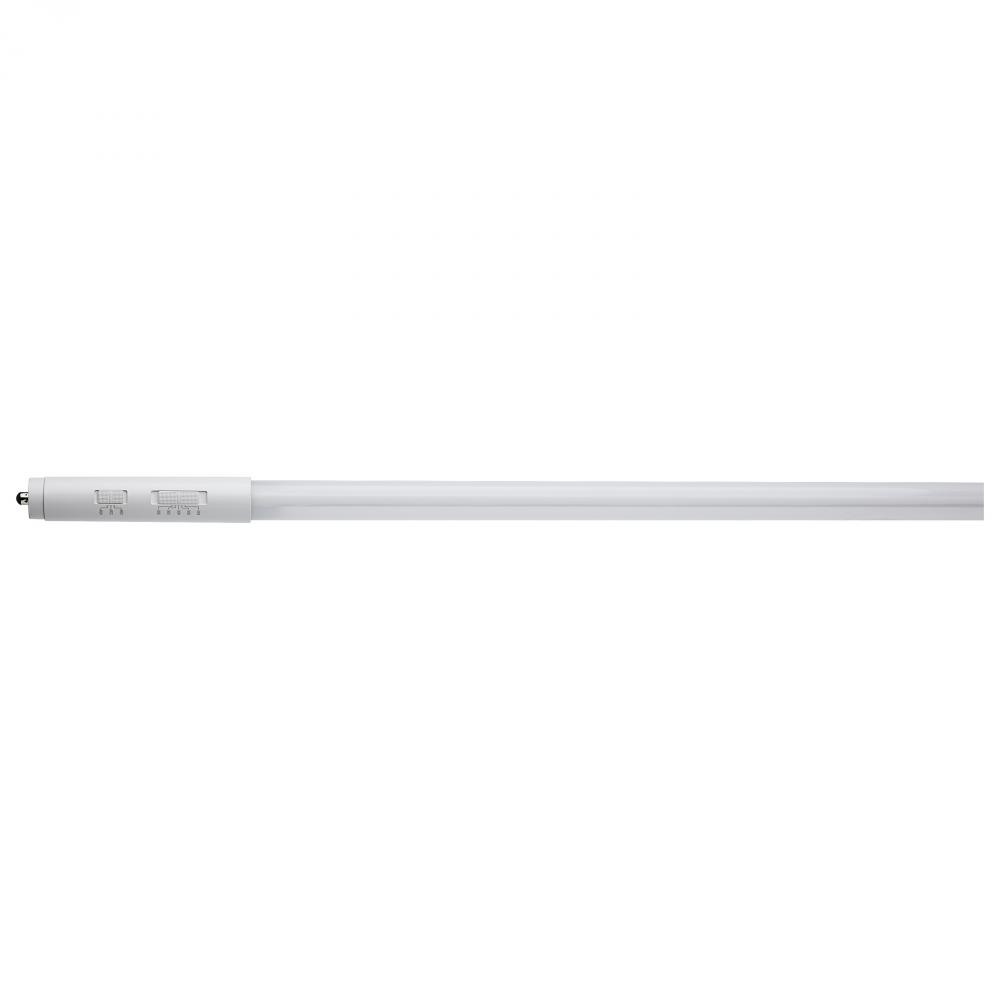

S11758 (24/32/40 Watt T8 LED; 30K/35K/40K/50K/65K CCT Selectable; 8 Foot; Ballast Bypass; Fa8 Base; 120-277) by Satco Products Inc.
Image may not reflect selected features
No Image
Available
Available
Call for Price
BASE PRICE:
$
37
90
/
/ 1 ($37.90 / 1)
WAS
$
+
-
Availability:
- Manufacturer has 11560 items available.
Add To Cart
Add To Quote
Add To Wishlist
Special Buy! Limited quantity with no backorders and shipping extra
Contact us for:
- Stock inquiries
- Rush delivery options
- If price is unavailable
CONTACT US
Save To Compare
Item #:
S11758
Dimensions:
Width: 1.00"
White
24/32/40 Watt T8 LED; 30K/35K/40K/50K/65K CCT Selectable; 8 Foot; Ballast Bypass; Fa8 Base; 120-277 Volt
Details
Vendor Item #:
S11758
Internal #:
X9R6W
Category:
Light Bulbs
Subcategory:
LED Bulbs
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
1
EA Length:
95.87
Harmonized Codes:
8539.52.0051
Length:
93.88
Lumens:
3500L/4400L/5500L
Shap Carton Width:
7.56
Ship Carton Height:
3.86
Ship Weight:
12.13
Warranty:
5-Years
Weight:
0.88
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
210
Bulb ANSI Base:
Fa8
Bulb Base:
Single Pin
Bulb Finish:
White
Carton Cubic Feet:
1.619
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Country Of Origin:
China
CRI:
80+
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-3Y6HM9
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
145.83/137.50/137.50 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
24W/32W/40W Wattage Selectable
Feature 10:
Ideal for use in Warehouses, Box Stores, Grocery Stores, Gymnasiums
Feature 2:
3000K/3500K/4000K/5000K/6500K CCT Selectable
Feature 3:
120V-277V Range Voltage
Feature 4:
PET Coated Glass Tube; NSF Rated
Feature 5:
Damp Location Rated
Feature 6:
Double Ended Wiring
Feature 7:
Optional R17d Base Caps Included
Feature 8:
Compatible with SATCO S8002 10W Emergency Driver
Feature 9:
Suitable for Open and Enclosed Fixtures
Flicker Free:
No
Flourescent Equivalent:
59W/86W/96W
Has Camera:
No
Has Emergency Battery:
No
Housing Color:
White
Includes:
(1) Set R17d & Fa8 Endcaps
IOT Enabled:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO NUVO's S11758 T8 8' ballast bypass lamp is field selectable, offering three wattage options and five CCT options in one convenient unit. Built for use in Fa8 lamp holders, it also comes with R17d adapter caps, making it versatile for use in a
Material:
Glass
Nominal Length:
96
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
10
Pack Type:
Egg Crate
Power Factor:
0.9
Quantity In Pack:
10
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's T8 8' ballast bypass lamp is field selectable, offering three wattage options and five CCT options in one convenient unit. Built for use in Fa8 lamp holders, it also comes with R17d adapter caps, making it versatile for use in a variet
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
40T8L/96/8CCT5/B/CF/U
Specification Notes:
Not for use in fully enclosed vapor tight fixtures
Surge Protection:
Built-in surge protection - 1KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<25%
Wattage Selectable:
Yes
Watts:
24W/32W/40W
Manufactured By:
Satco Products Inc.
